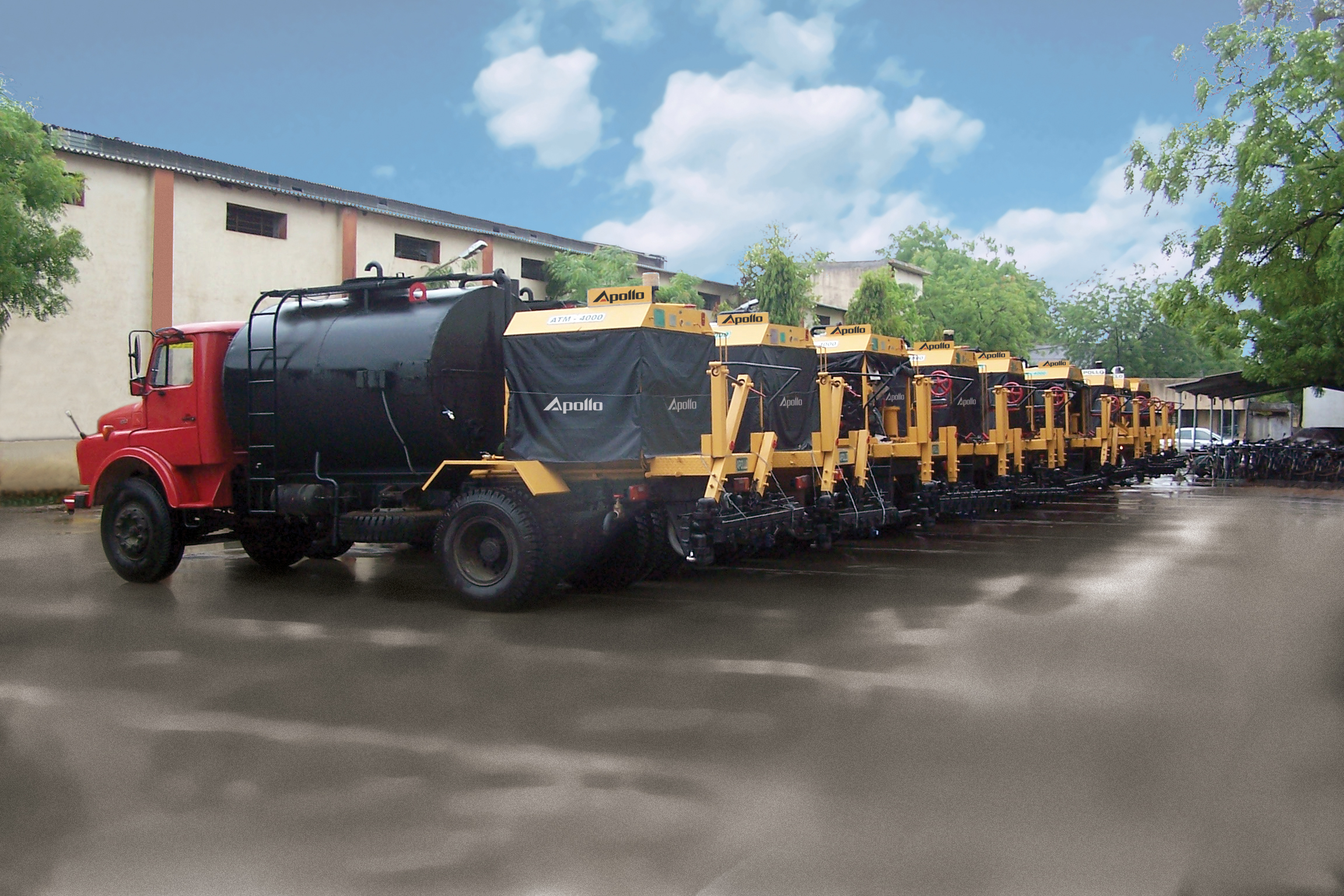

ATM Bitumen Sprayers

Our ATM Model of Bitumen pressure distributors, gives uniform, unbroken and prescribed quantity of hot bitumen or emulsion. These units can be supplied as a module to suit mounting on customer’s truck chassis or can be supplied completely along with standard truck chassis.

The unit has a built in heating system with a high capacity burner to heat the bitumen to the required temperature. Various fuel options as well as burner options are offered on specific requests. The Insulated Storage tank clad with Industrial gauge steel sheets built strictly to Industrial codes for storing, handling and transportation of Hot Bitumen. The cladding is optionally available in a wide range of options ranging from Galvanized, Aluminium or Stainless steel sheets.

A unique pressure cleaning system is a standard, which cleans the system after use and avoids clogging at the end of days work. This reduces the up time for the next day or at next job site.

Each unit comes loaded with a speed detection & driver control system, twin cylindered air compressor, 25 HP air cooled diesel engine, High capacity positive displacement internal gear type asphalt pump, remote control station, hand spraying attachment and barrel heating arrangement.

The horizontally folding spray bar is supplied with a basic width of 2.4 Meter extendable up to 4.2 Meter or optionally up to 4.5 Meter. The Fully circulating spray bar can deliver bitumen at pressures ranging from 0- 6 kg/sq m. All units are supplied with an inbuilt bitumen charging / loading system. The bar is supplied with nozzles at a standard pitch of 225 mm, pneumatically operated and easily adjustable.

Complete range of models with rated Capacities of 4000, 6000, 8000 & 10000 Litres.

  • Highlights

  • Specifications

  • Fully – insulated tank with high efficiency heating system.
  • Air cooled diesel engine and positive displacement gear pump.
  • Designed to suit standard truck chassis.
  • Safe and ease of operation.
  • Hand spray system.
  • Unique pressure cleaning system.
  • Suitable for bitumen emulsion.
  • Totally factory tested, arrives ready to launch.
  • Bitumen tank cladded with G.I. sheet.

Air Compressor :
Twin Cylindered, 2.25 KW, 360 LPM capacity with working pressure of 9 KG/CM-².

Driving Unit
Powered by 18.5 KW (25 HP) air cooled diesel engine.

Bitumen Spraying Pressure :
0 – 6 kg/cm2, pressurized bitumen spraying.

Temperature Indicators
0 – 300-°C (Analog) scale located on the tank.
Digital temperature indicator on remote box.

Spray Bar
Standard width 2.4 mtr.
Adjustable extension bar for spraying width up to 4.2 mtr.
(Optionally a twin folding spay bar extendable upto 4.5 mtr. can be supplied.)
Nozzle distance 225 mm c/c.
Pneumatically operated nozzle for spray bar controlling.

MODEL ATM 4000 ATM 6000 ATM 8000 ATM 10000
TANK DETAILS
L – Length 2400 mm 3000 mm 4000 mm 4400 mm
W – Width 2108 mm 2108 mm 2108 mm 2208 mm
H – Height 1708 mm 1708 mm 1708 mm 1758 mm
Capacity 4000 ltr. 6000 ltr. 8000 ltr. 10000 ltr.
Man Hole 600 mm 600 mm 600 mm x 2 nos. 600 mm x 2 nos.
Insulation 50 mm 50 mm 50 mm 50 mm
Shape Elliptical Elliptical Elliptical Elliptical
BURNER
Type Compressed Air Type Compressed Air Type Compressed Air Type Compressed Air Type
Burner Fuel Tank 50 ltr. 50 ltr. 50 ltr. 50 ltr.
Engine Fuel Tank 20 ltr. 20 ltr. 20 ltr. 20 ltr.
Service Tank 20 ltr. 20 ltr. 20 ltr. 20 ltr.
RECOMMENDED CHASSIS
Wheel Base – WB 148″ 176″ 182″ 198″
Clear Chassis Length – CL 5000 mm 5600 mm 6600 mm 7000 mm
Minimum Height of Chassis – CH 1150 mm 1150 mm 1150 mm 1150 mm
Bitumen Pump Internal Gear Pump Internal Gear Pump Internal Gear Pump Internal Gear Pump
DRIVING UNIT
Engine Model Kirloskar HA 294 or Equi. Kirloskar HA 294 or Equi. Kirloskar HA 294 or Equi. Kirloskar HA 294 or Equi.
Engine Output 18.5 kw @ 2000 rpm,Air Cooled 18.5 kw @ 2000 rpm,Air Cooled 18.5 kw @ 2000 rpm,Air Cooled 18.5 kw @ 2000 rpm,Air Cooled
Air Compressor Twin Cylindered 2.25 kw Twin Cylindered 2.25 kw Twin Cylindered 2.25 kw Twin Cylindered 2.25 kw
